CD4503BNSR
Manufacturer:
Texas Instruments
Mfr.Part #:
CD4503BNSR
Datasheet:
Description:

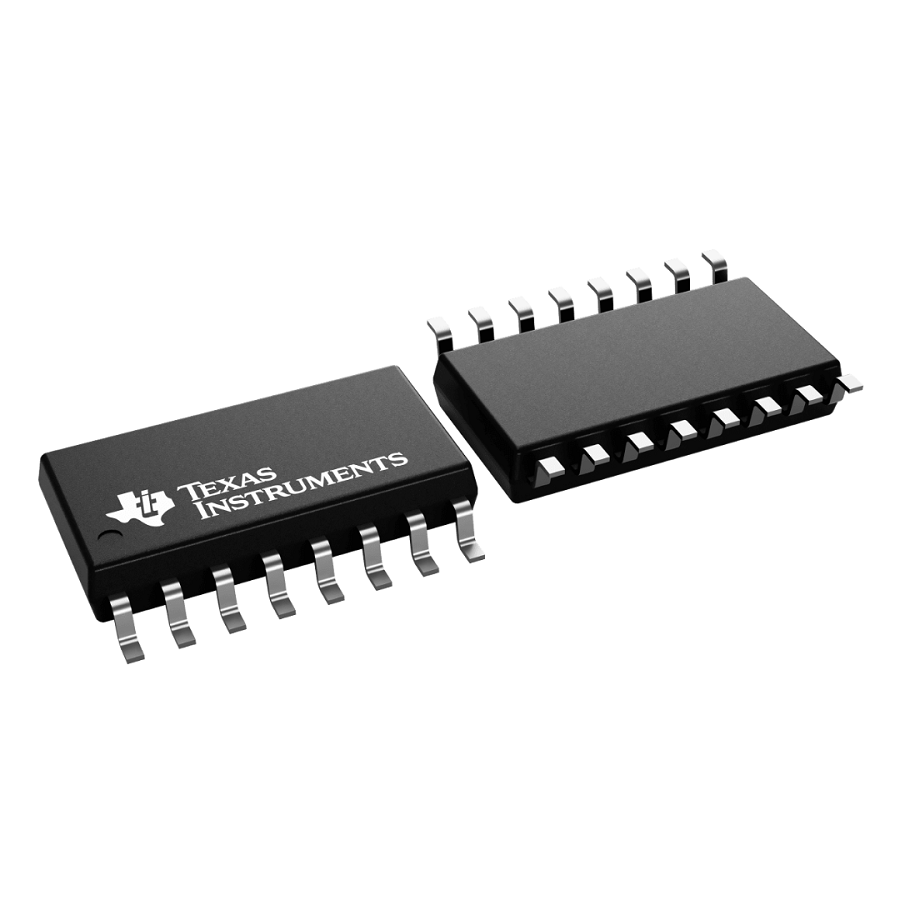

Buffers, Drivers, Resceivers and Transceivers SO-16 SMD/SMT Push-Pull
| Parameter | Value |
|---|---|
| Length | 10.3 mm |
| Width | 5.3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Height | 2 mm |
| Packaging | Reel |
| Thickness | 1.95 mm |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| Contact Plating | Gold |
| Number of Elements | 2 |
| Output Type | Push-Pull |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Max Power Dissipation | 100 mW |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 6 |
| Number of Bits | 6 |
| Turn-On Delay Time | 180 ns |
| Operating Supply Current | 60 µA |
| Quiescent Current | 20 µA |
| Propagation Delay | 150 ns |
| High Level Output Current | -8.2 mA |
| Low Level Output Current | 19.2 mA |
| Logic Function | Buffer, Inverting |
| Number of Inputs | 6 |
| Number of Bits per Element | 2, 4 |
| Number of Outputs | 6 |
| Number of Input Lines | 6 |
| Number of Output Lines | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 6 days ago) |
Stock: 1217
Distributors
pcbx
pcbxUnit Price$0.49858
Ext.Price$0.49858
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49858 | $0.49858 |
| 10 | $0.35733 | $3.57330 |
| 25 | $0.32106 | $8.02650 |
| 50 | $0.30063 | $15.03150 |
| 100 | $0.28151 | $28.15100 |
| 300 | $0.26592 | $79.77600 |
| 500 | $0.25119 | $125.59500 |
| 1000 | $0.24859 | $248.59000 |
